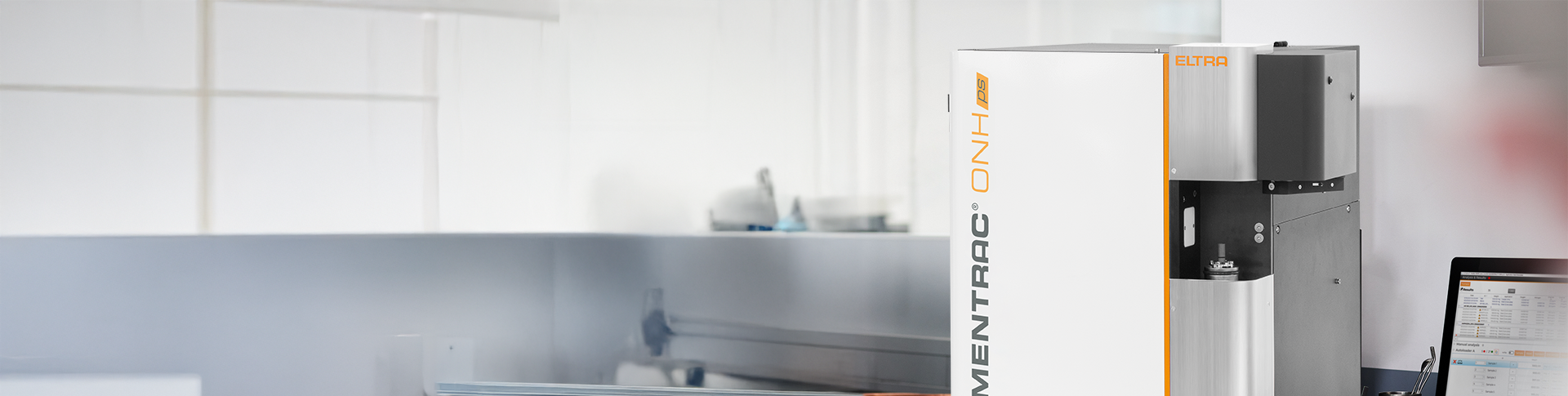

The new ELEMENTRAC ONH-ps is a powerful and robust elemental analyzer for the simultaneous determination of oxygen, nitrogen and hydrogen concentrations in inorganic samples such as steel, iron, copper or ceramics. The highly sensitive NDIR cells without moving parts and the thermal conductivity detector for nitrogen measurement reliably detect element concentrations from the low ppm range to the high percentage range.
Thanks to the novel sample lock with pulsed chamber purging and vertical fall channel, user-friendly and convenient analysis of rod-shaped, granular or powdery samples with a weighed portion of up to 2 grams is easily possible. The ELEMENTRAC ONH-ps elemental analyzer meets or exceeds the requirements of all common international standards, such as ASTM E 1019 or DIN EN 3976.
酸素 / 窒素 / 水素 分析装置 ELEMENTRAC ONH- p
- 密閉されたガスシステムによる低ガス消費と高感度分析
- ピン、パウダー、顆粒状サンプルの簡単なアプリケーション
- ヘリウムガスより安価なアルゴンガスを使用することが可能
- 短い分析時間
- 8.5kWの強力な電極インパルス炉
- オプションのオートクリーナー
- 鉄鋼、非鉄金属、セラミック、スラグ、鉱石など無機サンプルの信頼性の高いONH分析
酸素 / 窒素 / 水素 分析装置ELEMENTRAC ONH-ps 典型的なサンプル材料
合金, アルミニウム カーバイド, 鋳鉄, セラミックス, 銅
, フェロアロイ, 鉄
, 金属, 耐火金属, 鋼
, ...
酸素 / 窒素 / 水素 分析装置 ELEMENTRAC ONH-ps 操作と分析のプロセス
ステップ1：サンプルの情報をELEMENTSソフトウェアに入力します
サンプルIDがソフトウェアに入力され、重量が自動的に転送されます（ステップ2を参照）
ステップ2：秤量して、ポートへサンプルを入れる
The ELEMENTRAC ONH-ps analyzes volumes from a few mg up to 2 grams safely and precisely. Rod-shaped or granular samples can be applied directly. For the elemental analysis of powders, a capsule is recommended which does not have to be sealed.
ステップ3：分析
次に、空のグラファイトるつぼを下部電極（グラファイトチップ上）に配置し、ELEMENTSソフトウェア上で分析を開始します。このソフトウェアで、分析にかかわるすべてのステップをコントロールします。
ステップ4：データ出力とエクスポート
分析開始後120〜180秒で、測定された酸素と窒素と水素の濃度は、レポートまたはLIMSを介してデータ出力できます。
The new measurement procedure
Common O/N/H analysis for inert gas fusion analyzers mean that a thermal conductivity cell is used for both hydrogen as well as for nitrogen analysis. This means that two independent measurements have to be performed when determination of nitrogen and hydrogen is required. The ELEMENTRAC ONH-ps utilizes a new designed water IR cell without moving parts which allows a reliable measurement of hydrogen as water even in the lower ppm concentration range. This allows the simultaneous measurement of oxygen, nitrogen and hydrogen in one sample.
| 測定元素 | Measured as | Detector | ||||
| 酸素 | CO2 | IR | ||||
| 窒素 | N2 | TCD | ||||
| 水素 (common technique) | H2 | TCD | ||||
| 水素(new technique) | H2O | IR | ||||
酸素 / 窒素 / 水素 分析装置 ELEMENTRAC ONH-ps 構成
The ELEMENTRAC ONH-ps is a multi-element analyser for the parallel determination of oxygen, nitrogen and hydrogen (ONH). While oxygen is detected as CO2 and hydrogen as H2O in infrared measuring cells, nitrogen is determined in elemental form using a thermal conductivity cell. The ELEMENTRAC ONH-ps uses helium or, alternatively, argon as the carrier gas.
The ELEMENTRAC ONH-ps uses our newly developed infrared measuring cells without moving parts. These measuring cells are characterised by a very good signal-to-noise ratio and high stability.
The ELEMENTRAC ONH-ps elemental analyzer is available as a single-element analyzer for hydrogen only, or in a multi-element configuration for measuring ONH. Whereas oxygen and hydrogen are determined as CO2 and H2O in up to three infrared cells, nitrogen is detected in its elemental form in a thermal conductivity cell.
可変長のキュベット
高感度の熱伝導度セル
酸素 / 窒素 / 水素 分析装置 ELEMENTRAC ONH-ps 統合された標準ソリューション
The chemicals and filters required for operation of the elemental analyzer are arranged conveniently on the front panel and can be concealed behind a removable door during routine operation. This arrangement significantly reduces the time required for maintenance and increases user-friendliness. In addition, innovative details considerably improve the reproducibility of measurements.
革新的なサンプルポートとパルスチャンバーフラッシング
The new sample port of the ONH-ps elemental analyzer ensures comfortable operation and reproducible measured values. Differently shaped materials like solid pieces, granules or powder in capsules can be applied up to a weight of 2000 mg, and are quickly freed from the surrounding atmosphere with the help of pulsed carrier gas flushing in the sample port. Then they drop vertically into the preheated graphite crucible for analysis.
- ダストの発生に強い
- カプセルを閉じる必要はありません
- 最大2gの顆粒サンプルのアプリケーション
- 低メンテナンスおよび低摩耗
強力な触媒炉
During fusion of the sample CO is formed, whereas hydrogen and nitrogen are released in elemental form. The powerful catalyst furnace oxidizes CO to CO2 and hydrogen to water, which are subsequently measured in the IR cells. The high temperature catalyst furnace with copper oxide filling guarantees the complete oxidation of CO to CO2 and of course of H2 to gaseous H2O.
密閉されたガス管理
The ELEMENTRAC ONH-ps elemental analyzer series uses a closed gas system in overpressure. This ensures that always 100% of the released sample gas is fed to the detectors which guarantees low detection limits and good reproducibility.
酸素 / 窒素 / 水素 分析装置ELEMENTRAC ONH-ps オプション
オートクリーナー
By melting the sample in a graphite crucible at temperatures of up to 3000 °C deposits are generated at the upper electrode and in the furnace chamber which may affect the reproducibility of ONH measurements in a negative way.
The new optional Autocleaner reliably removes these deposits, enabling precise elemental analysis even for high throughputs. Additionally, an efficient gas calibration and cleaning furnace for thorough carrier gas pre-cleaning are available for the elemental analyzer.
新製品オートローダ
IoT - Internet of things The platform for remote access to your devices
- Real-time Monitoring: Gain insight into the status of your machines at any time thanks to immediate access to important data.
- Live Notifications: Stay up to date on the status of your devices with instant notifications.
- Effortless Backup: Whether you need to back up a single device or an entire fleet, back up your data effortlessly and minimize downtime.
- Automatic Software Updates: Verder Scientific IoT keeps your device software up to date, optimizing performance and reliability.
- Access to Analyses Data: ELTRA analyzers offer remote access to analysis data. This allows you to conveniently access important data while on the move.
- Autoloader Efficiency: Get the most out of remote analysis preparation with our autoloader feature, which ensures uninterrupted operation and increased productivity for all instruments equipped with it.
Experience the power of the Verder Scientific IoT platform today and unlock the full potential of your ELTRA analyzers!
酸素 / 窒素 / 水素 分析装置ELEMENTRAC ONH-ps 機能
The ELEMENTRAC ONH-ps uses a measuring principle with a wide operating range. To analyse the sample, it is weighed and placed in the sample lock. Flushing with carrier gas ensures that no atmosphere (e.g. nitrogen and oxygen) enters the analysis chamber.
The graphite crucible is then annealed in the pulse furnace to reduce any contamination, such as residual hydrogen. After a stabilisation phase, the sample falls into the graphite crucible and is melted. Elemental nitrogen, hydrogen and carbon monoxide are released from the sample melt into the carrier gas stream. The carbon monoxide comes from the reaction of the carbon in the graphite crucible with the oxygen in the sample. The carrier gas (helium) and the sample gas pass through a dust filter before entering a copper oxide catalyst, where CO is converted to CO2 and elemental hydrogen to H2O.
The resulting CO2 and H2O are then detected in the infrared cells. CO2 and H2O are chemically removed and the nitrogen content is measured in the heat conduction cell.
Optionally, inexpensive argon can be used instead of helium as the carrier gas for determining oxygen and nitrogen.
酸素 / 窒素 / 水素 分析装置 ELEMENTRAC ONH-ps 製品仕様
| Measured elements | oxygen, nitrogen, hydrogen |
|---|---|
| Samples | inorganic |
| Furnace alignment | vertical |
| Sample carrier | graphite crucibles |
| Field of application | metal production, quality control, research, metallurgy, aviation, automotive |
| Furnace | electrode impulse furnace (max. 8,5 KW*), temperatures in excess of 3,000 °C |
| Detection method | infrared absorption for oxygen and hydrogen, thermal conductivity for nitrogen |
| Typical analysis time | 120 - 180 s |
| Chemicals required | copper oxide, magnesium perchlorate,sodium hydroxide |
| Gas required | compressed air, helium 99.995 % pure, argon 99.995% pure (if required), all gases with (2 - 4 bar / 30 - 60 psi) |
| Power requirements | 3~ 400 V, 50/60 Hz, max. 8,500 W |
| Dimensions (W x H x D) | 56 x 78 x 64 cm |
| Weight | ~ 165 kg |
| Required equipment | PC, monitor, balance (resolution 0.0001g) |
| Optional accessories | carrier gas purification, autocleaner,autoloader, external chiller |
