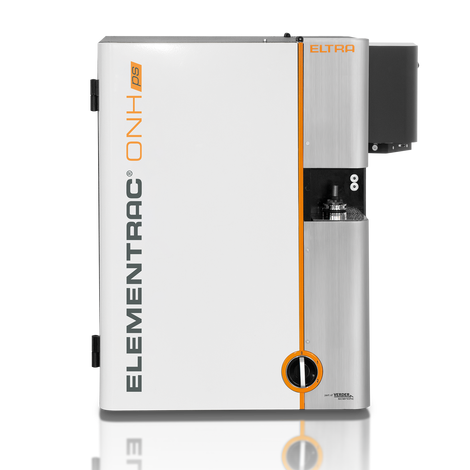

The new ELEMENTRAC ONH-ps is a powerful and robust elemental analyzer for the simultaneous determination of oxygen, nitrogen and hydrogen concentrations in inorganic samples such as steel, iron, copper or ceramics. The highly sensitive NDIR cells without moving parts and the thermal conductivity detector for nitrogen measurement reliably detect element concentrations from the low ppm range to the high percentage range.
Thanks to the novel sample lock with pulsed chamber purging and vertical fall channel, user-friendly and convenient analysis of rod-shaped, granular or powdery samples with a weighed portion of up to 2 grams is easily possible. The ELEMENTRAC ONH-ps elemental analyzer meets or exceeds the requirements of all common international standards, such as ASTM E 1019 or DIN EN 3976.
OXYGEN / NITROGEN / HYDROGEN ANALYZER ELEMENTRAC ONH- p
- Low gas consumption and high sensitivity due to closed gas system
- Easy application of pins, powders and granules
- Inexpensive argon as carrier gas possible
- Short analysis time
- Powerful impulse furnace with 8.5 kW
- Optional Autocleaner
- Reliable ONH elemental analysis of inorganic samples like steel, non-ferrous metals, ceramics, slags, ores, etc.
OXYGEN / NITROGEN / HYDROGEN ANALYZERELEMENTRAC ONH-ps Typical Sample Materials
alloys, aluminum carbides, cast iron, ceramics, copper, ferroalloys, iron, metals, refractory metals, steel, ...
OXYGEN / NITROGEN / HYDROGEN ANALYZER ELEMENTRAC ONH-ps Operation and Analysis Process
Step 1: Logging the sample into the ELEMENTS software
The sample ID is logged into the software and the weight is automatically transferred (see step 2).
Step 2: Weighing and introduction of sample into the port
The ELEMENTRAC ONH-ps analyzes volumes from a few mg up to 2 grams safely and precisely. Rod-shaped or granular samples can be applied directly. For the elemental analysis of powders, a capsule is recommended which does not have to be sealed.
Step 3: Analysis
The empty graphite crucible is then placed on the lower electrode and the elemental analysis is started via the ELEMENTS software. The software controls all subsequent process steps.
Step 4: Data output and export
120 to 180 seconds after the analysis has started, the measured concentrations are available for export as a report or via LIMS.
The new measurement procedure
Common O/N/H analysis for inert gas fusion analyzers mean that a thermal conductivity cell is used for both hydrogen as well as for nitrogen analysis. This means that two independent measurements have to be performed when determination of nitrogen and hydrogen is required. The ELEMENTRAC ONH-ps utilizes a new designed water IR cell without moving parts which allows a reliable measurement of hydrogen as water even in the lower ppm concentration range. This allows the simultaneous measurement of oxygen, nitrogen and hydrogen in one sample.
| Elements | Measured as | Detector | ||||
| Oxygen | CO2 | IR | ||||
| nitrogen | N2 | TCD | ||||
| Hydrogen (common technique) | H2 | TCD | ||||
| Hydrogen(new technique) | H2O | IR | ||||
OXYGEN / NITROGEN / HYDROGEN ANALYZER ELEMENTRAC ONH-ps Configurations
The ELEMENTRAC ONH-ps is a multi-element analyser for the parallel determination of oxygen, nitrogen and hydrogen (ONH). While oxygen is detected as CO2 and hydrogen as H2O in infrared measuring cells, nitrogen is determined in elemental form using a thermal conductivity cell. The ELEMENTRAC ONH-ps uses helium or, alternatively, argon as the carrier gas.
The ELEMENTRAC ONH-ps uses our newly developed infrared measuring cells without moving parts. These measuring cells are characterised by a very good signal-to-noise ratio and high stability.
The ELEMENTRAC ONH-ps elemental analyzer is available as a single-element analyzer for hydrogen only, or in a multi-element configuration for measuring ONH. Whereas oxygen and hydrogen are determined as CO2 and H2O in up to three infrared cells, nitrogen is detected in its elemental form in a thermal conductivity cell.
Cuvette with variable length
Thermal conductivity cell with high sensitivity
OXYGEN / NITROGEN / HYDROGEN ANALYZER ELEMENTRAC ONH-ps Integrated standard solutions

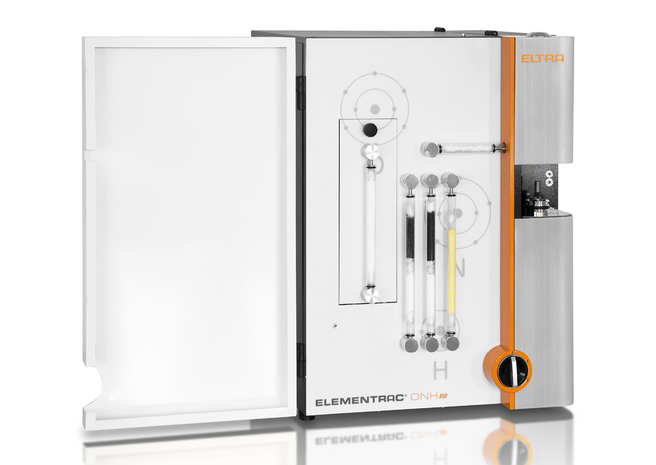

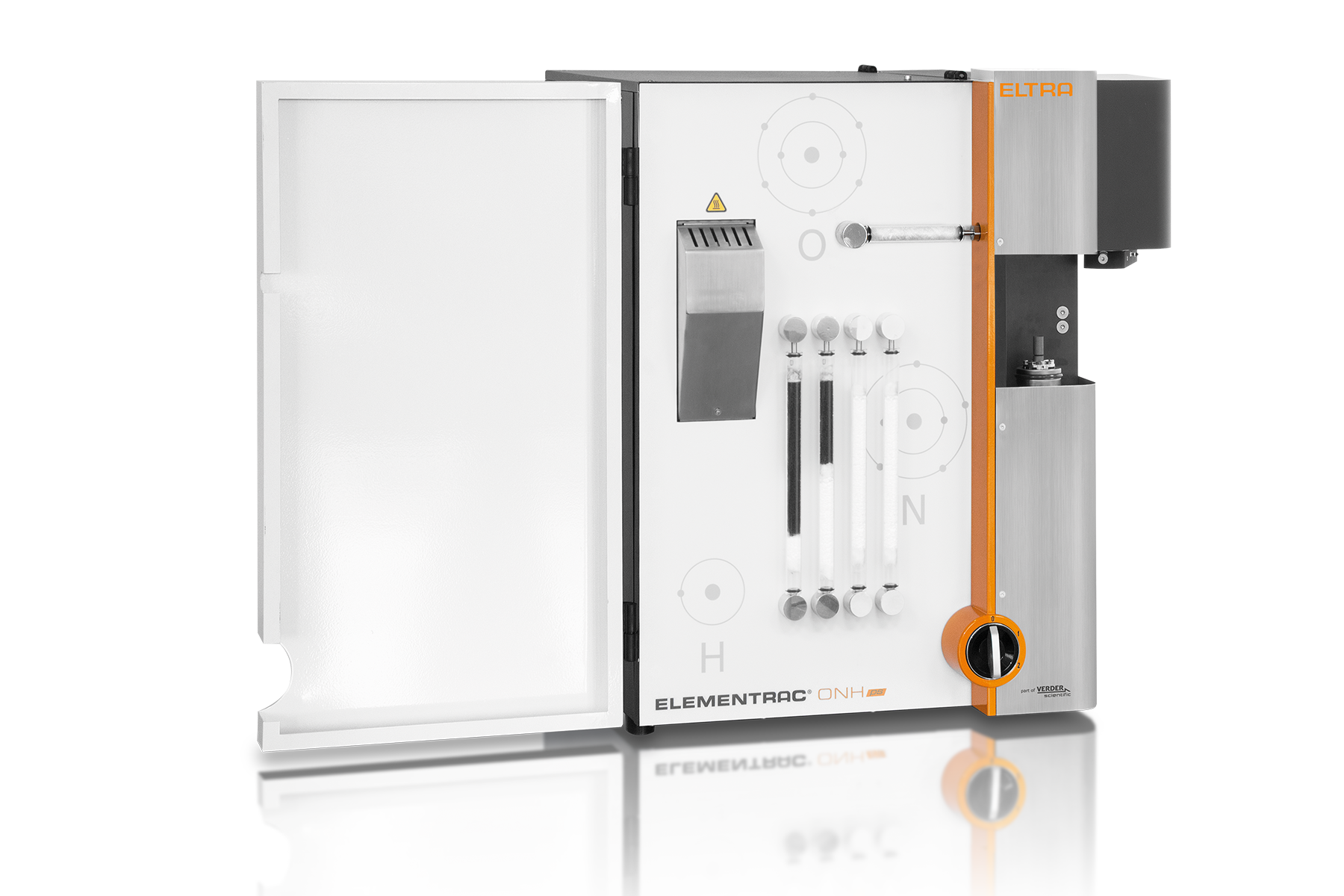

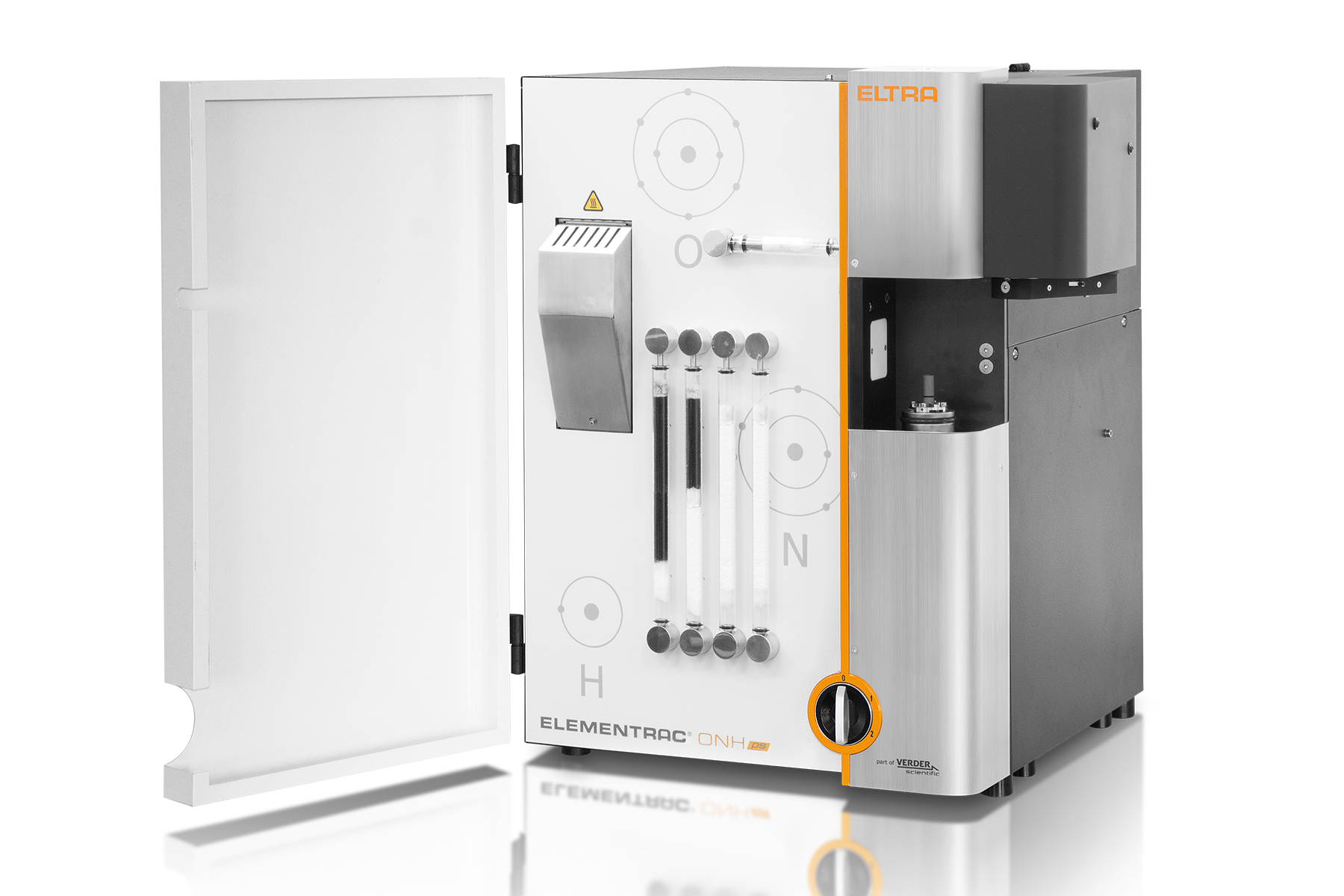

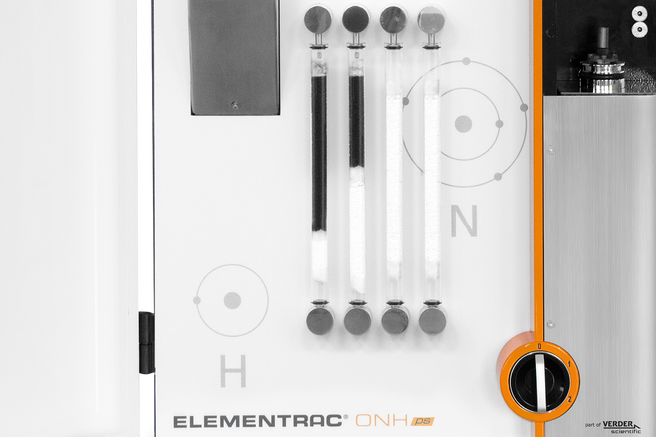

The chemicals and filters required for operation of the elemental analyzer are arranged conveniently on the front panel and can be concealed behind a removable door during routine operation. This arrangement significantly reduces the time required for maintenance and increases user-friendliness. In addition, innovative details considerably improve the reproducibility of measurements.

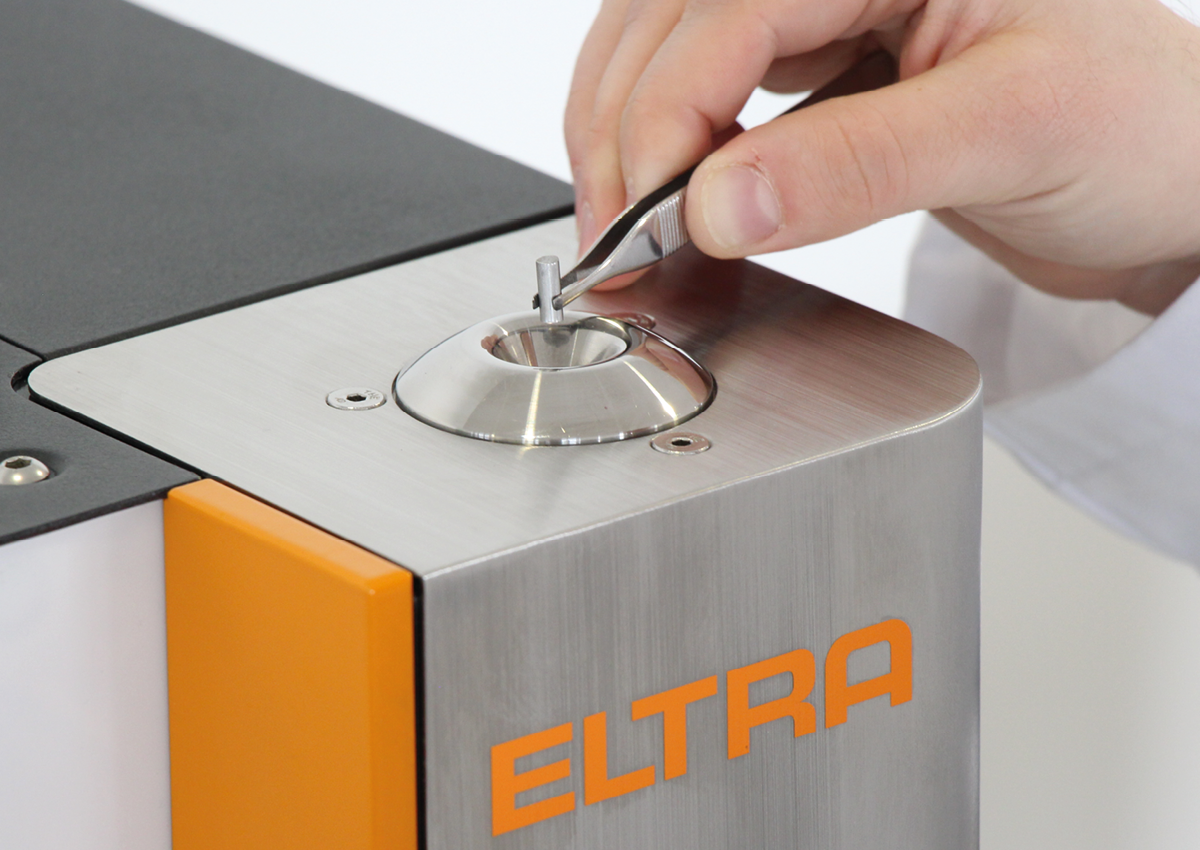

Innovative sample port & pulsed chamber flushing
The new sample port of the ONH-ps elemental analyzer ensures comfortable operation and reproducible measured values. Differently shaped materials like solid pieces, granules or powder in capsules can be applied up to a weight of 2000 mg, and are quickly freed from the surrounding atmosphere with the help of pulsed carrier gas flushing in the sample port. Then they drop vertically into the preheated graphite crucible for analysis.
- Robust against dust development
- No closing of capsules required
- Direct application of up to 2000 mg granulate
- Low in maintenance and wear
Powerful catalyst
During fusion of the sample CO is formed, whereas hydrogen and nitrogen are released in elemental form. The powerful catalyst furnace oxidizes CO to CO2 and hydrogen to water, which are subsequently measured in the IR cells. The high temperature catalyst furnace with copper oxide filling guarantees the complete oxidation of CO to CO2 and of course of H2 to gaseous H2O.
Closed gas management
The ELEMENTRAC ONH-ps elemental analyzer series uses a closed gas system in overpressure. This ensures that always 100% of the released sample gas is fed to the detectors which guarantees low detection limits and good reproducibility.
OXYGEN / NITROGEN / HYDROGEN ANALYZERELEMENTRAC ONH-ps Options

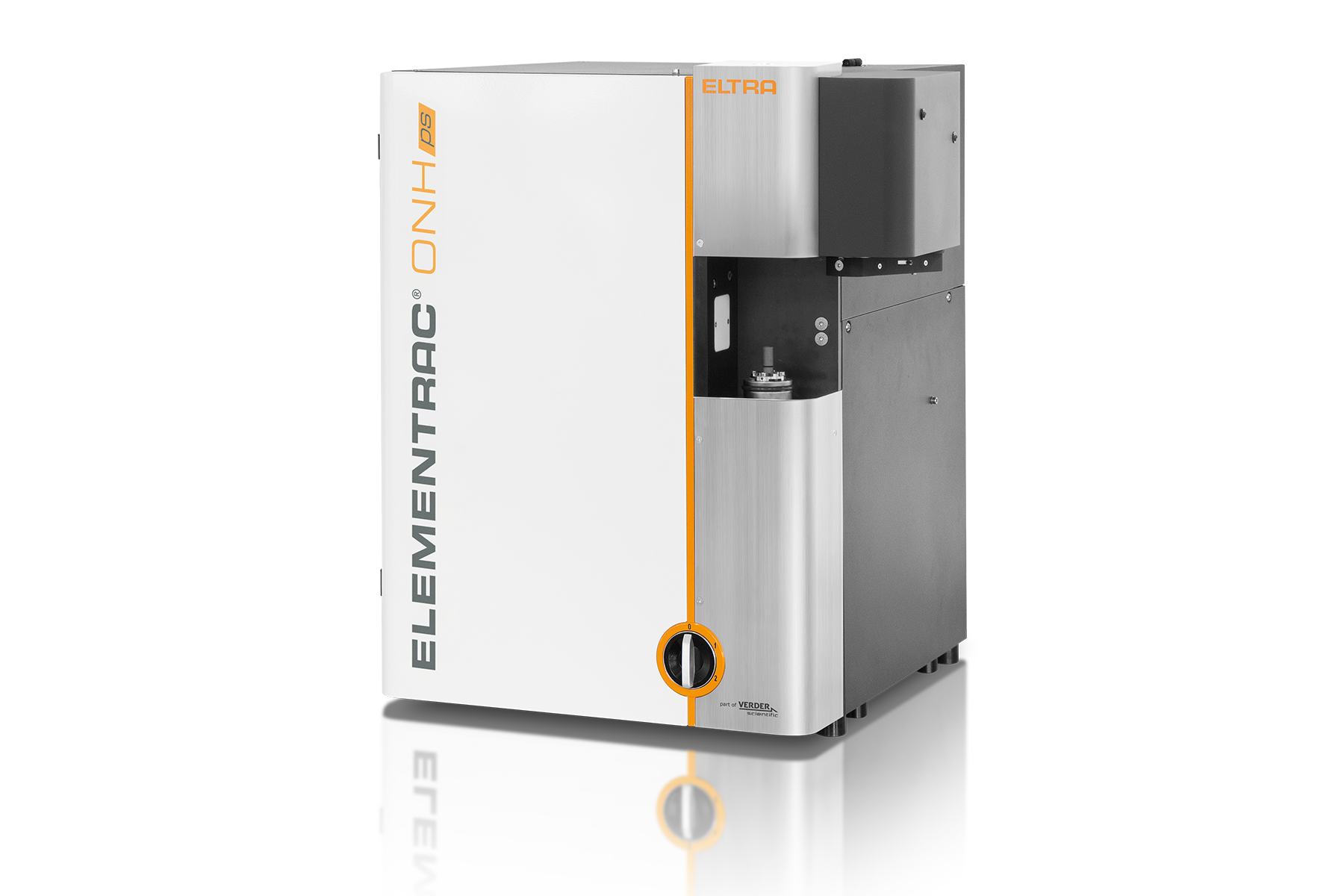

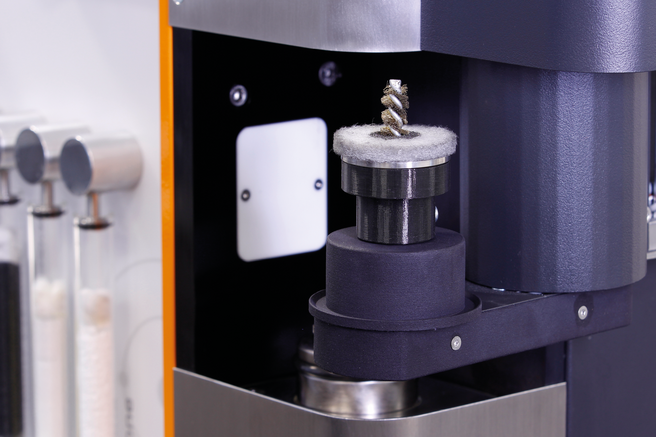

Autocleaner
By melting the sample in a graphite crucible at temperatures of up to 3000 °C deposits are generated at the upper electrode and in the furnace chamber which may affect the reproducibility of ONH measurements in a negative way.
The new optional Autocleaner reliably removes these deposits, enabling precise elemental analysis even for high throughputs. Additionally, an efficient gas calibration and cleaning furnace for thorough carrier gas pre-cleaning are available for the elemental analyzer.
NEWAutoloader
IoT - Internet of things The platform for remote access to your devices
- Real-time Monitoring: Gain insight into the status of your machines at any time thanks to immediate access to important data.
- Live Notifications: Stay up to date on the status of your devices with instant notifications.
- Effortless Backup: Whether you need to back up a single device or an entire fleet, back up your data effortlessly and minimize downtime.
- Automatic Software Updates: Verder Scientific IoT keeps your device software up to date, optimizing performance and reliability.
- Access to Analyses Data: ELTRA analyzers offer remote access to analysis data. This allows you to conveniently access important data while on the move.
- Autoloader Efficiency: Get the most out of remote analysis preparation with our autoloader feature, which ensures uninterrupted operation and increased productivity for all instruments equipped with it.
Experience the power of the Verder Scientific IoT platform today and unlock the full potential of your ELTRA analyzers!
OXYGEN / NITROGEN / HYDROGEN ANALYZERELEMENTRAC ONH-ps Functional Principle
The ELEMENTRAC ONH-ps uses a measuring principle with a wide operating range. To analyse the sample, it is weighed and placed in the sample lock. Flushing with carrier gas ensures that no atmosphere (e.g. nitrogen and oxygen) enters the analysis chamber.
The graphite crucible is then annealed in the pulse furnace to reduce any contamination, such as residual hydrogen. After a stabilisation phase, the sample falls into the graphite crucible and is melted. Elemental nitrogen, hydrogen and carbon monoxide are released from the sample melt into the carrier gas stream. The carbon monoxide comes from the reaction of the carbon in the graphite crucible with the oxygen in the sample. The carrier gas (helium) and the sample gas pass through a dust filter before entering a copper oxide catalyst, where CO is converted to CO2 and elemental hydrogen to H2O.
The resulting CO2 and H2O are then detected in the infrared cells. CO2 and H2O are chemically removed and the nitrogen content is measured in the heat conduction cell.
Optionally, inexpensive argon can be used instead of helium as the carrier gas for determining oxygen and nitrogen.
OXYGEN / NITROGEN / HYDROGEN ANALYZER ELEMENTRAC ONH-ps Technical Data
| Measured elements | oxygen, nitrogen, hydrogen |
|---|---|
| Samples | inorganic |
| Furnace alignment | vertical |
| Sample carrier | graphite crucibles |
| Field of application | metal production, quality control, research, metallurgy, aviation, automotive |
| Furnace | electrode impulse furnace (max. 8,5 KW*), temperatures in excess of 3,000 °C |
| Detection method | infrared absorption for oxygen and hydrogen, thermal conductivity for nitrogen |
| Typical analysis time | 120 - 180 s |
| Chemicals required | copper oxide, magnesium perchlorate,sodium hydroxide |
| Gas required | compressed air, helium 99.995 % pure, argon 99.995% pure (if required), all gases with (2 - 4 bar / 30 - 60 psi) |
| Power requirements | 3~ 400 V, 50/60 Hz, max. 8,500 W |
| Dimensions (W x H x D) | 56 x 78 x 64 cm |
| Weight | ~ 165 kg |
| Required equipment | PC, monitor, balance (resolution 0.0001g) |
| Optional accessories | carrier gas purification, autocleaner,autoloader, external chiller |
