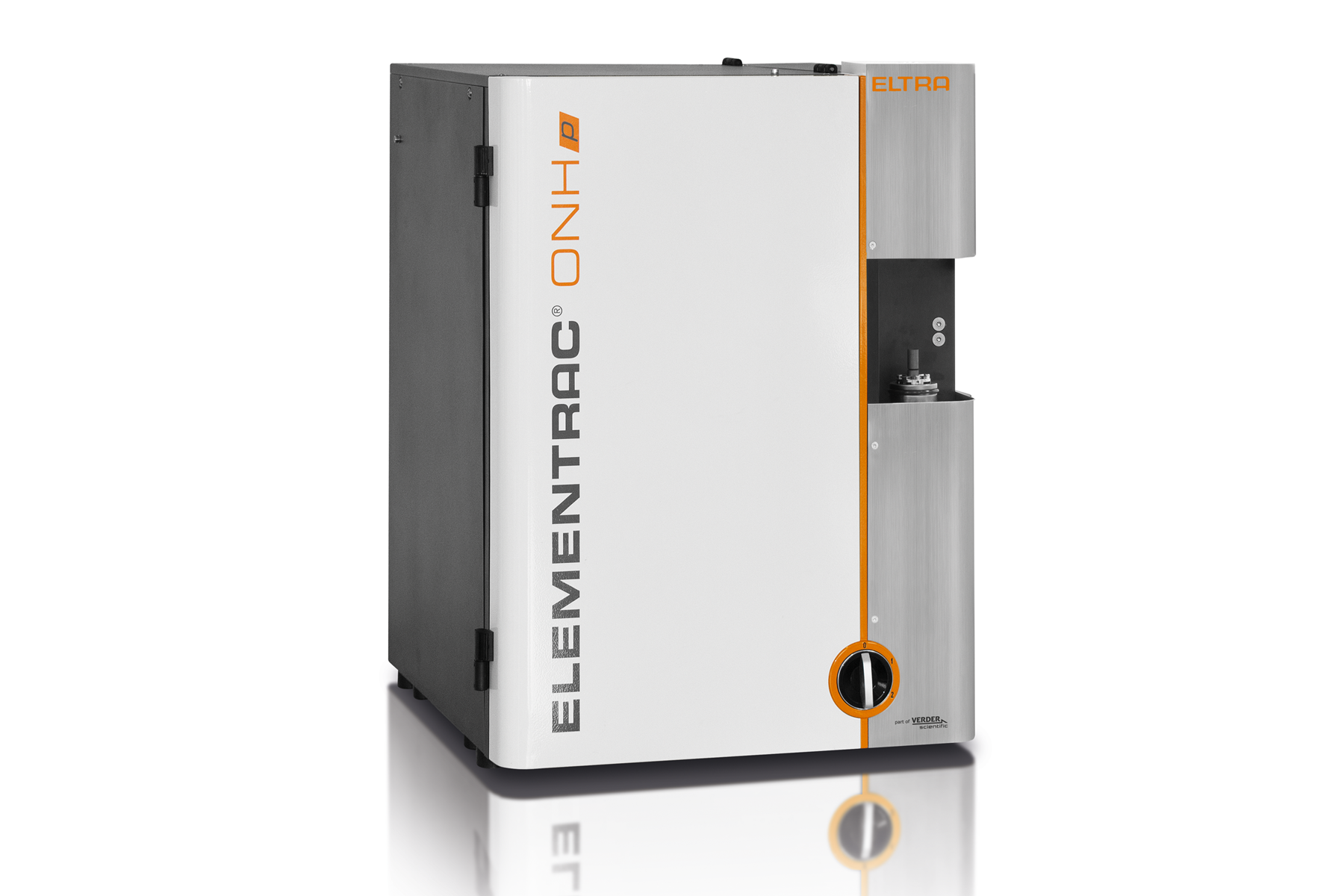

OXYGEN / NITROGEN / HYDROGEN ANALYZER ELEMENTRAC ONH-p

The new ELEMENTRAC ONH-p is a powerful and robust elemental analyzer for measurement of oxygen, nitrogen and hydrogen concentrations in inorganic materials like steel, iron, copper or ceramics. The highly sensitive NDIR and thermal conductivity detectors reliably detect element concentrations from low ppm content to high percentages.

The innovative sample port system with pulsed chamber rinsing and vertical sample drop allow for user-friendly and comfortable analysis of rod-shaped, granular or powdery samples with a weight of up to 2 grams.

The ELEMENTRAC ONH-p elemental analyzer meets or exceeds the requirements of all relevant international standards such as ASTM E 1019 or DIN EN 3976.



Product Video

OXYGEN / NITROGEN / HYDROGEN ANALYZER ELEMENTRAC ONH- ps

  • Parallel determination of the three elements oxygen, nitrogen and hydrogen
  • New sensitive infrared measuring cells without moving parts
  • Low gas consumption and high sensitivity due to closed gas system
  • Easy application of pins, powders and granules
  • Inexpensive argon possible as carrier gas
  • Short analysis time
  • Powerful impulse furnace with 8.5 kW
  • Optional autocleaner and autoloader
  • Reliable ONH analysis for a wide range of inorganic samples such as steel, non-ferrous metals, ceramics, slags, ores, etc.

OXYGEN / NITROGEN / HYDROGEN ANALYZER ELEMENTRAC ONH-ps Operation and Analysis Process

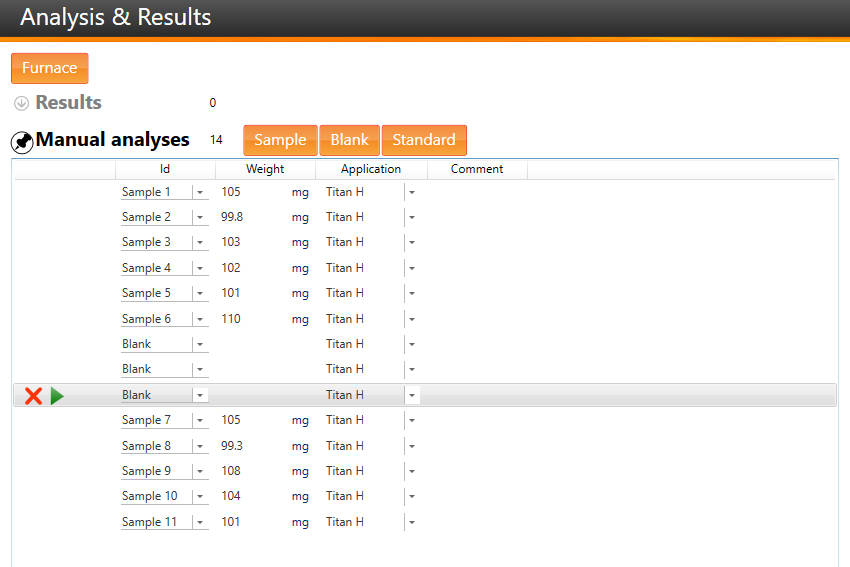

Step 1: Logging the sample into the ELEMENTS software

Step 1: Logging the sample into the ELEMENTS software

The sample ID is logged into the software and the weight is automatically transferred (see step 2).

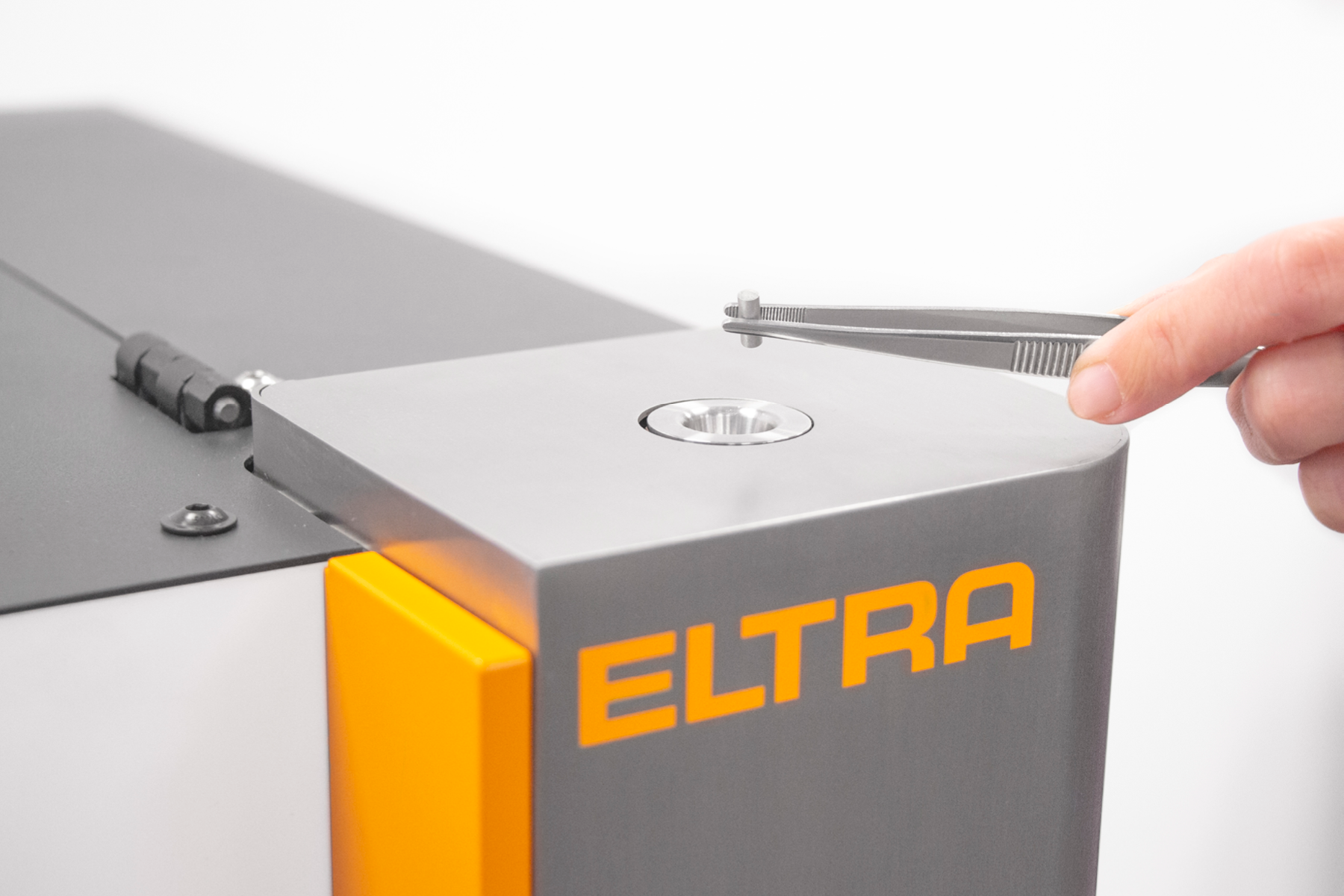

Step 2: Weighing and introduction of sample into the port

Step 2: Weighing and introduction of sample into the port

The ELEMENTRAC ONH-p analyzes volumes from a few mg up to 2 grams safely and precisely. Rod-shaped or granular samples can be applied directly. For the elemental analysis of powders, a capsule is recommended which does not have to be sealed.

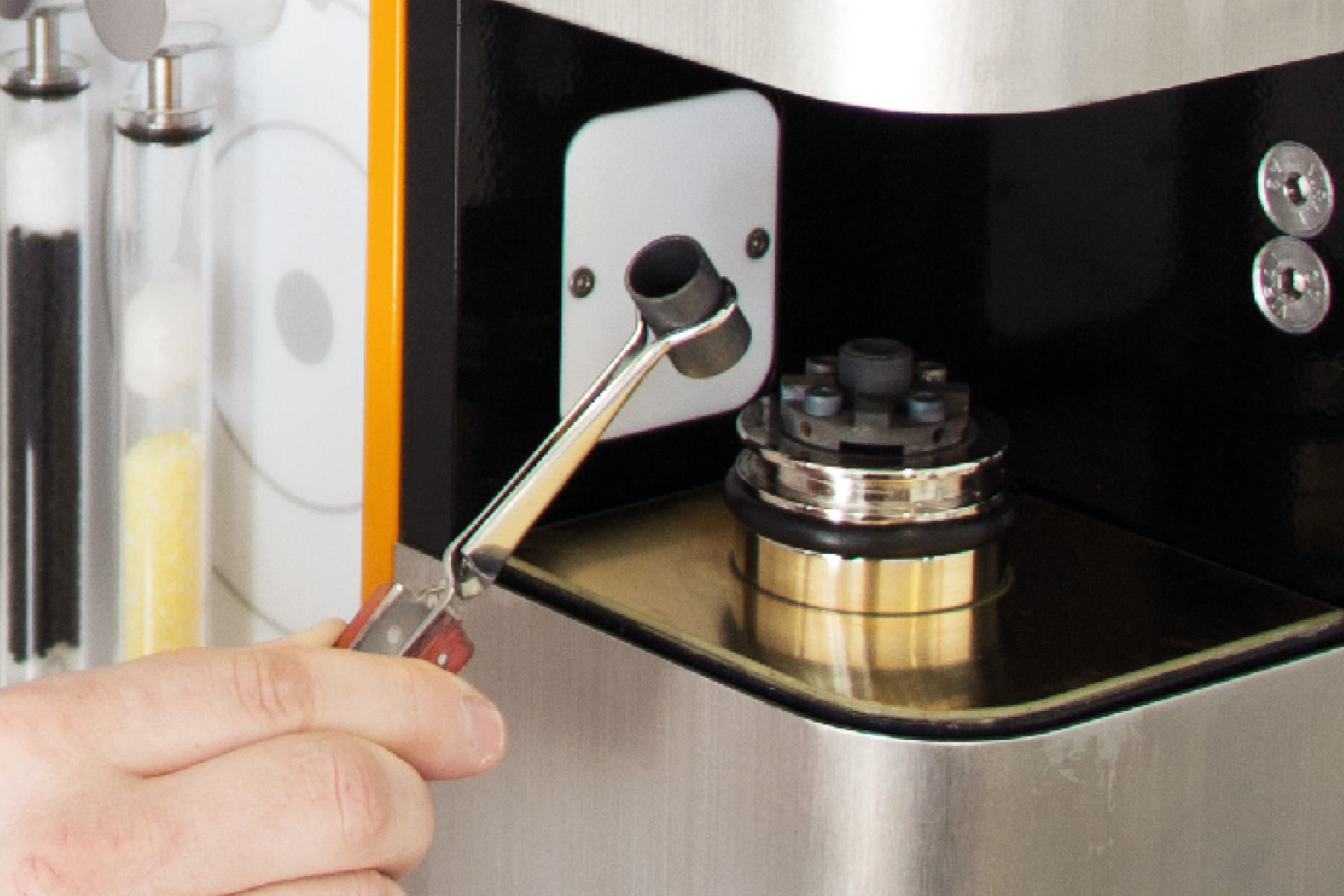

Step 3: Analysis

Step 3: Analysis

The empty graphite crucible is then placed on the lower electrode and the elemental analysis is started via the ELEMENTS software. The software controls all subsequent process steps.

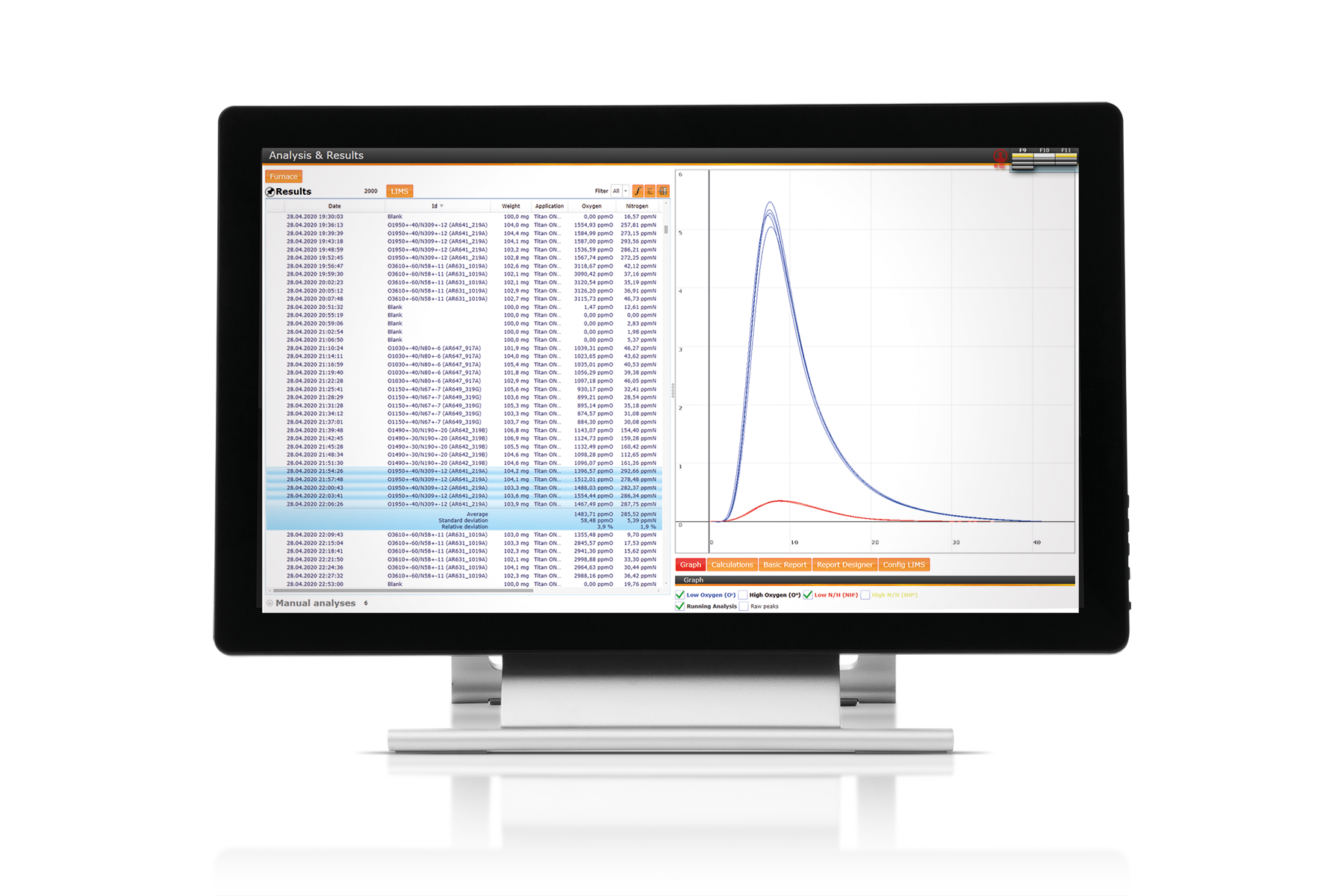

Step 4: Data output and export

Step 4: Data output and export

120 to 180 seconds after the analysis has started, the measured concentrations are available for export as a report or via LIMS.

OXYGEN / NITROGEN / HYDROGEN ANALYZER ELEMENTRAC ONH-p Configurations

The ELEMENTRAC ONH-p elemental analyzer is available as a single-element analyzer for oxygen, nitrogen or hydrogen only, or in a multi-element configuration for measuring ON, OH, NH, or ONH. Whereas oxygen is determined as CO2 in up to two infrared cells, nitrogen and hydrogen are detected in their elemental form in a thermal conductivity cell. The ELEMENTRAC ONH-p elemental analyzer uses an ON mode with helium carrier gas (optionally argon) and an OH mode with nitrogen carrier gas to take advantage of the sensitive thermal conductivity cell.

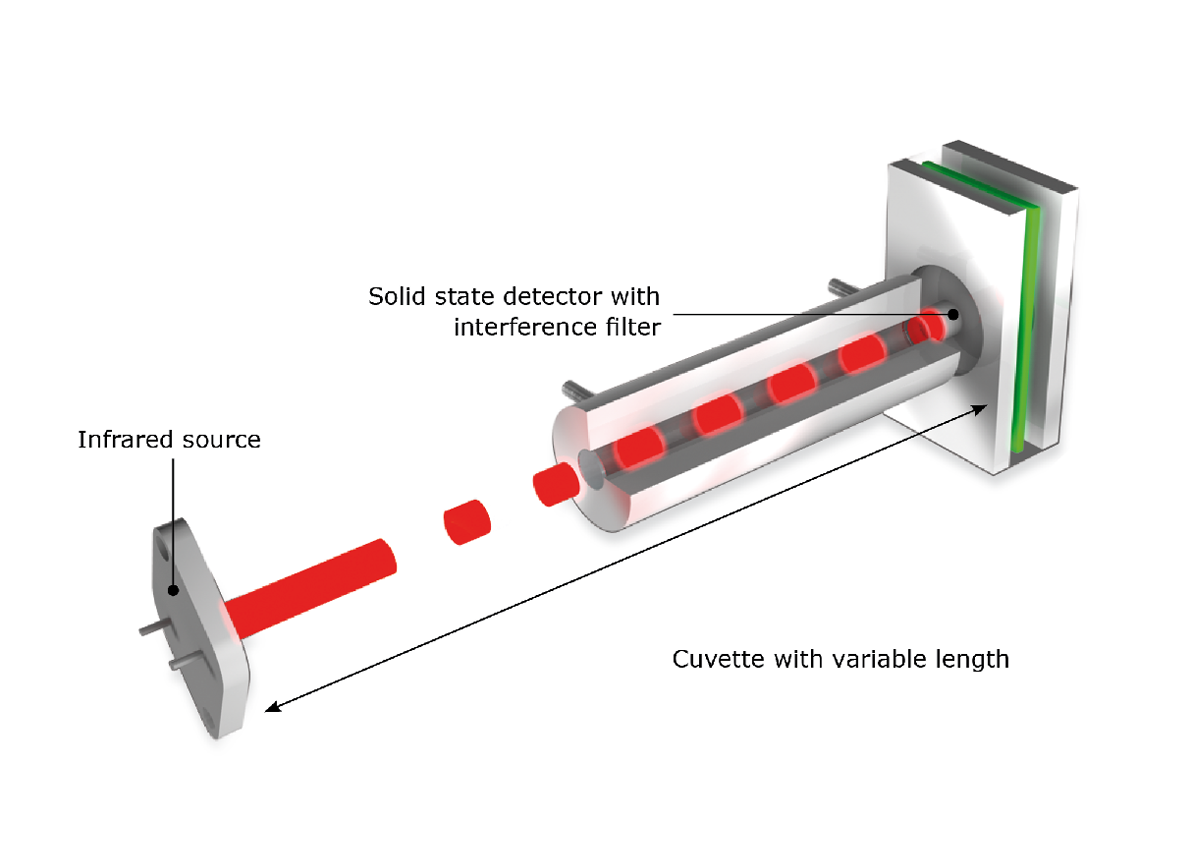

Cuvette with variable length

Thermal conductivity cell with high sensitivity

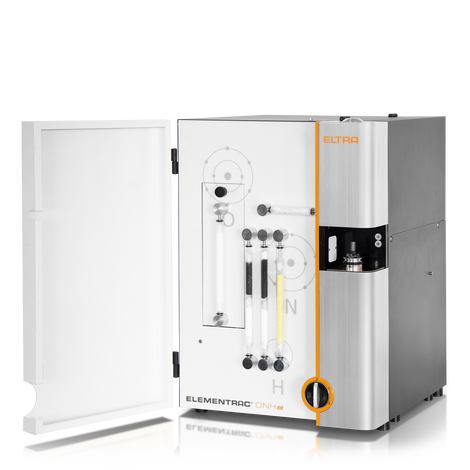

OXYGEN / NITROGEN / HYDROGEN ANALYZER ELEMENTRAC ONH-p Integrated standard solutions

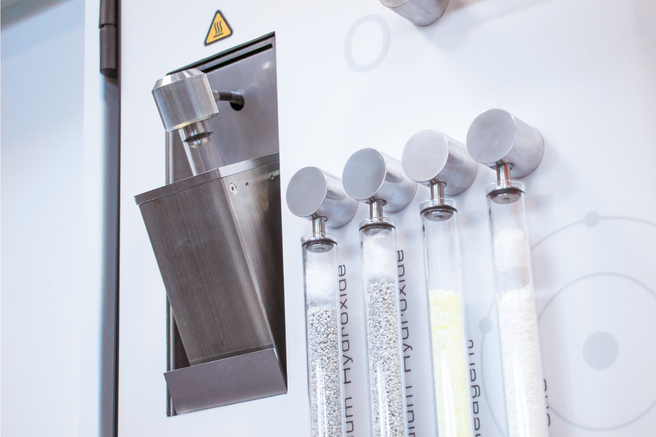

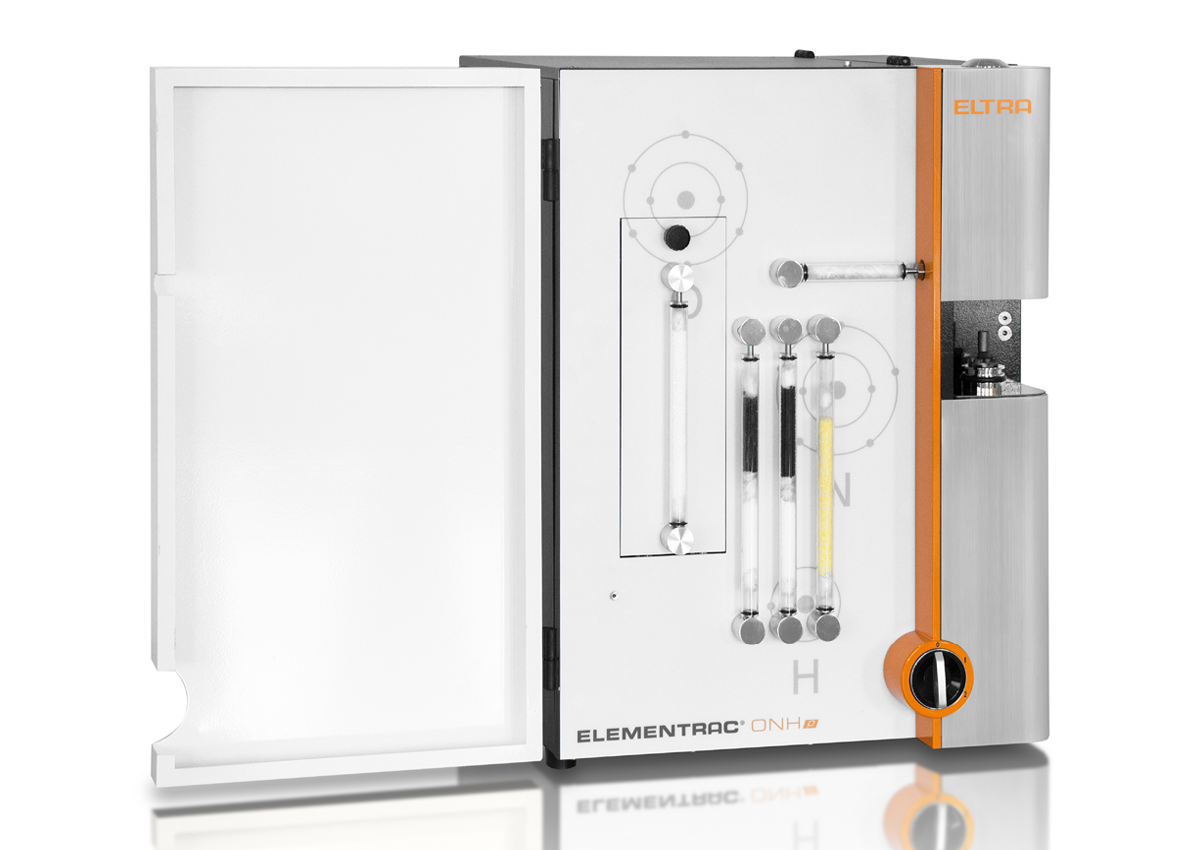

The chemicals and filters required for the operation of the ELEMENTRAC ONH-p elemental analyzer are arranged conveniently on the front panel and can be concealed behind a removable door during routine operation. This arrangement significantly reduces the time required for maintenance and increases user-friendliness. In addition, innovative details considerably improve the reproducibility of measurements.

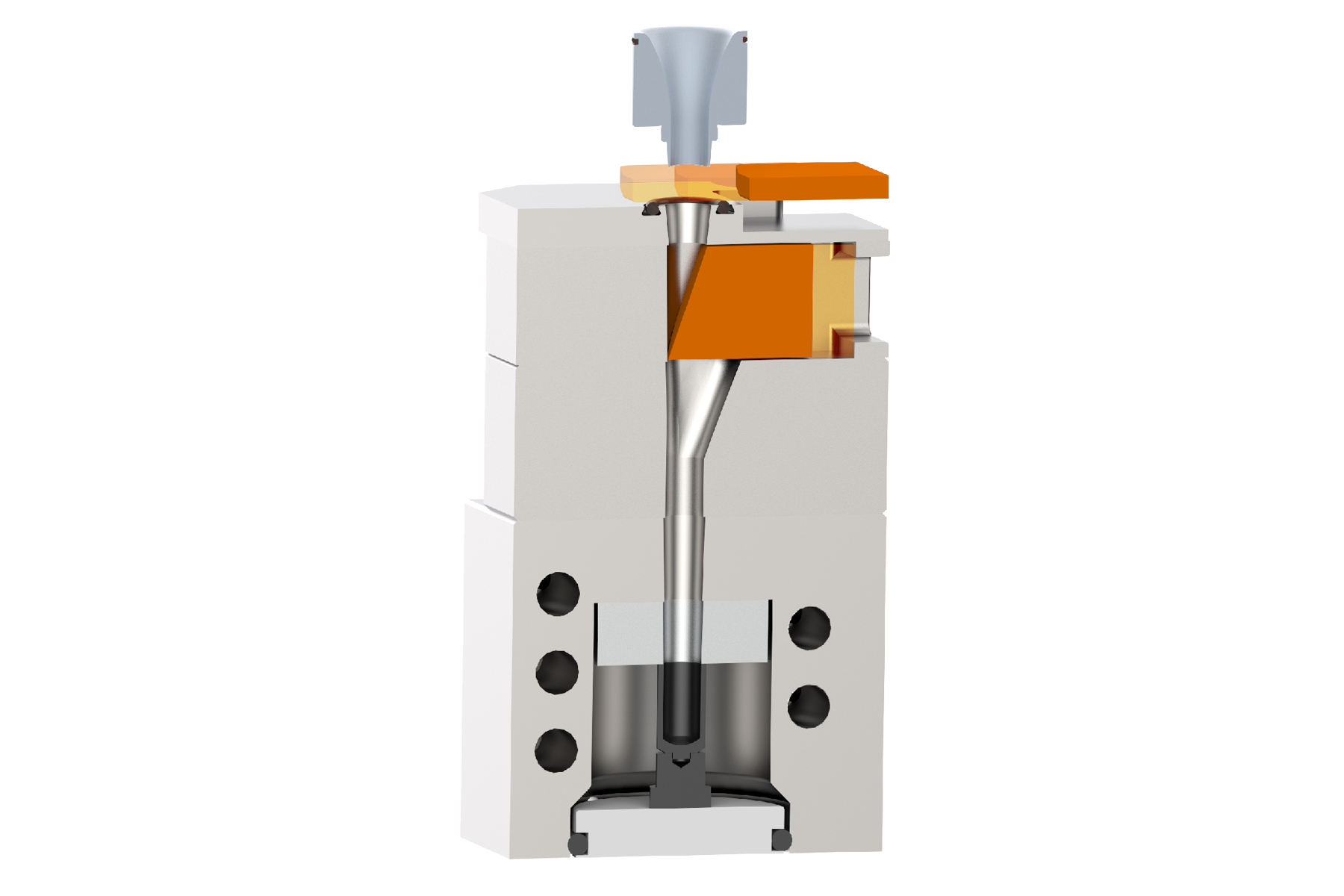

Innovative sample port & pulsed chamber flushing

The new sample port of the ONH-p elemental analyzer ensures comfortable operation and reproducible measured values. Differently shaped samples like solid pieces, granules or powder in capsules can be applied up to a weight of 2000 mg, and are quickly freed from the surrounding atmosphere with the help of pulsed carrier gas flushing in the sample port. Then they drop vertically into the preheated graphite crucible for analysis.

  • Robust against dust development
  • No closing of capsules required
  • Direct application of up to 2000 mg granulate
  • Low in maintenance and wear

Powerful catalyst

During elemental analysis in the graphite crucible, carbon monoxide (CO) is produced which is converted to carbon dioxide (CO2) in the catalyst and subsequently detected in the IR cells. The easy-to-maintain catalyst with copper oxide filling ensures complete oxidation and thus, reliable oxygen analysis even of difficult materials such as oxides.



Closed gas management

The ELEMENTRAC ONH elemental analyzer series uses a closed gas system in overpressure. This ensures that always 100% of the released sample gas is fed to the detectors which guarantees low detection limits and good reproducibility.



OXYGEN / NITROGEN / HYDROGEN ANALYZERELEMENTRAC ONH-p Options

In addition to the integrated solutions of the ELEMENTRAC ONH-p, further options are available to increase efficiency and extend the application range of your elemental analysis.

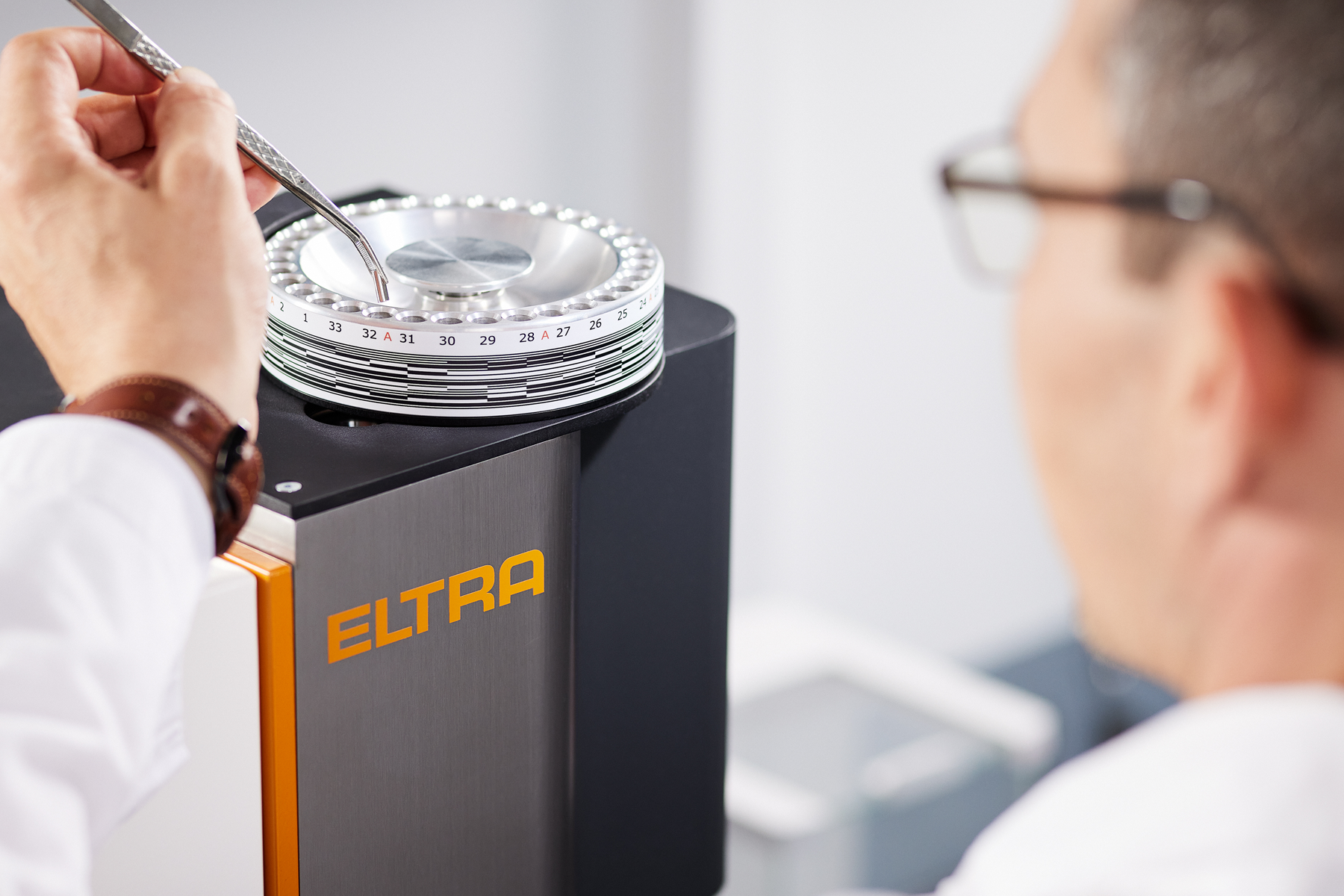

NEW : Autoloader

High-capacity automated sample loading is becoming an increasingly important factor for fast and robust O/N/H analysis in metals. The new autoloader for the ELEMENTRAC ONH-p features a sample carousel with 32 positions, as well as a correspondingly designed crucible magazine.

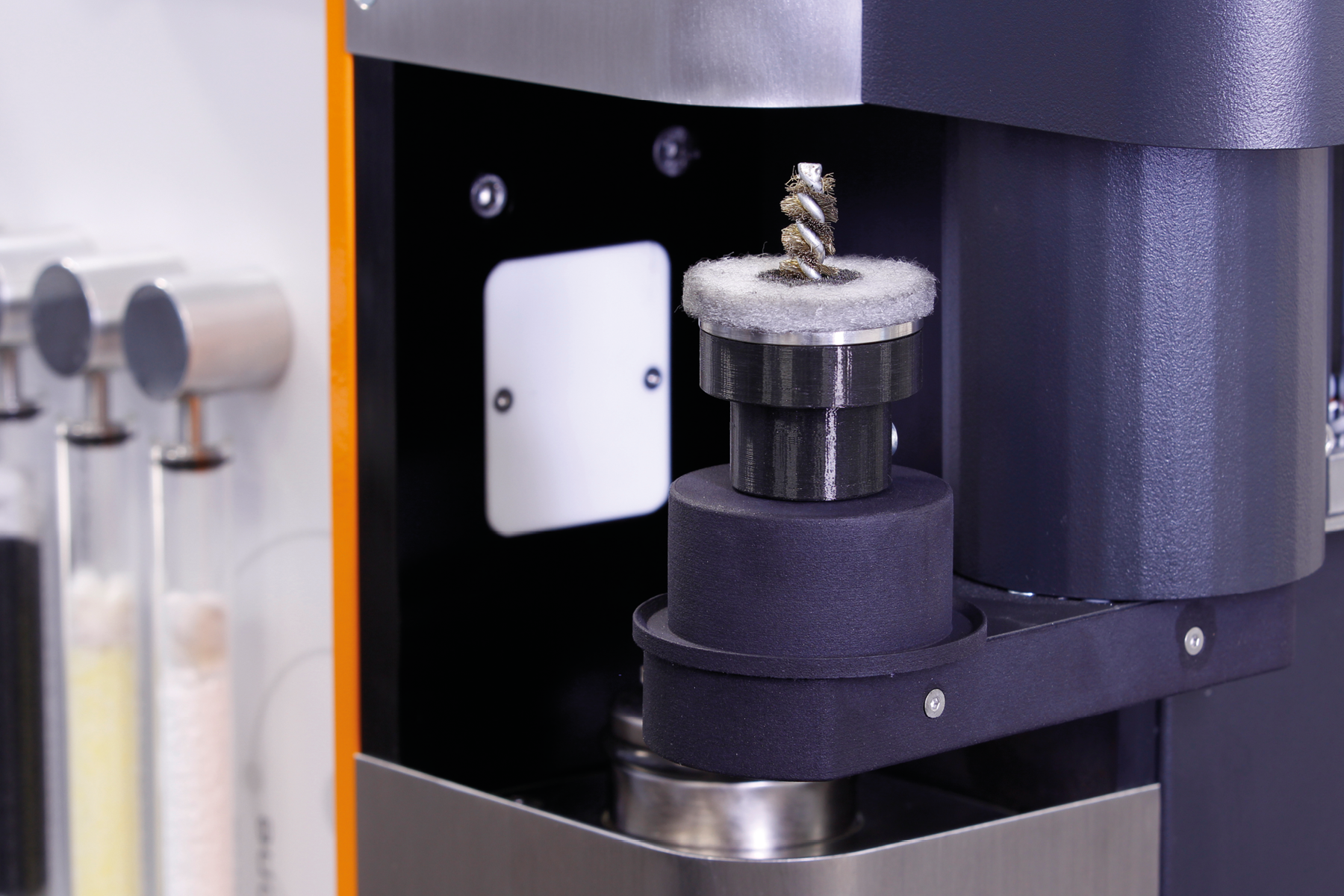

Autocleaner

By melting the sample in a graphite crucible at temperatures of up to 3000 °C deposits are generated at the upper electrode and in the furnace chamber which may affect the reproducibility of ONH measurements in a negative way.

The new optional Autocleaner reliably removes these deposits, enabling precise elemental analysis even for high throughputs. Additionally, an efficient gas calibration and cleaning furnace for thorough carrier gas pre-cleaning are available for the elemental analyzer.

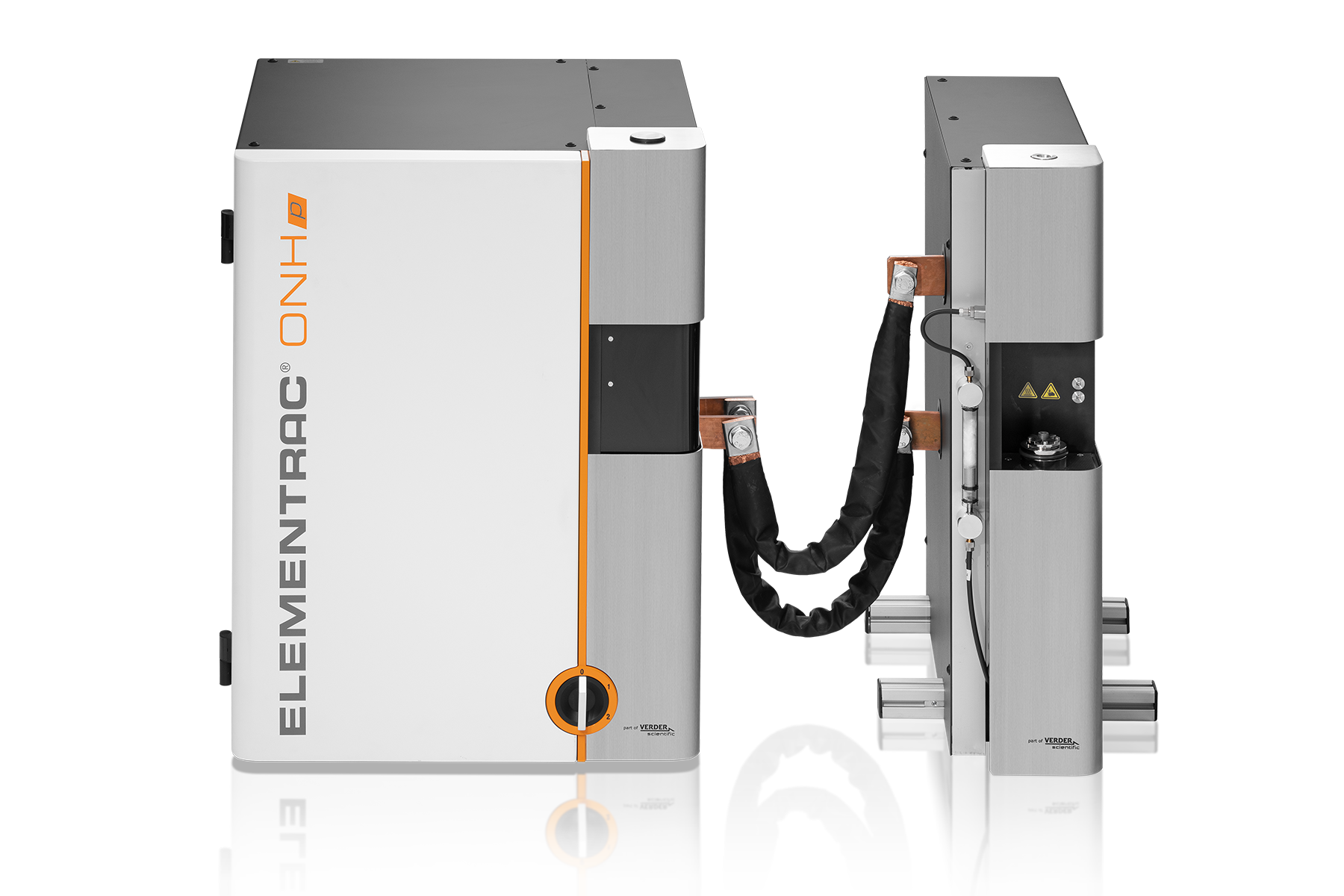

ELEMENTRAC ONH‑p Glovebox

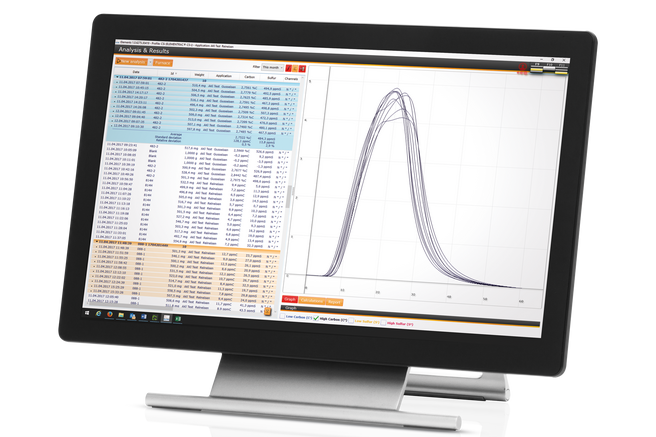

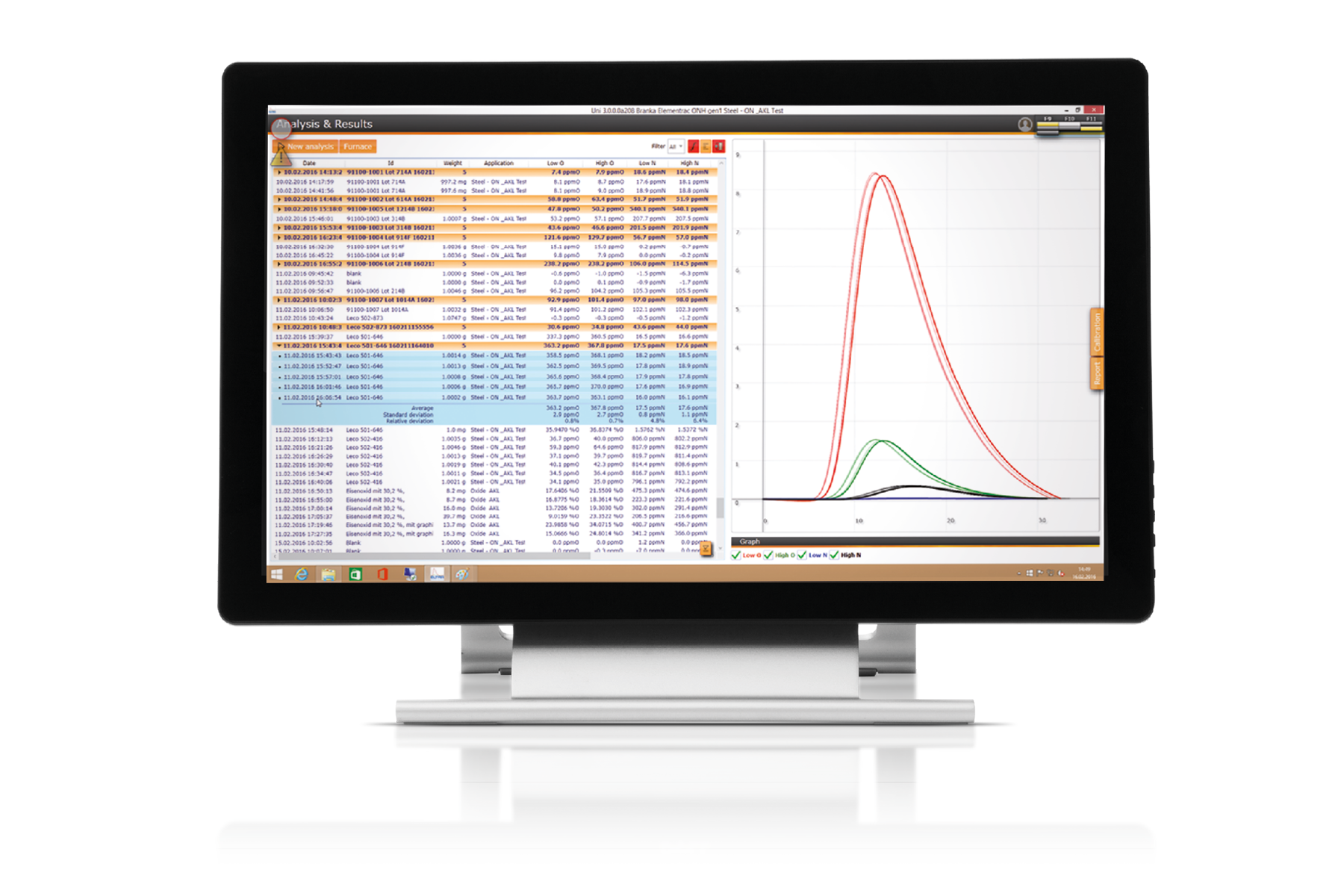

ELEMENTS Software

The comprehensive Windows-based ELEMENTS software is an essential part of all ELEMENTRAC generation elemental analyzers.

A central window (analysis and results) is the starting point from which all functionalities required for the daily routine are easily accessible. From here it is possible to group and export analyzed samples, or register and analyze new ones. The user may call up various subordinate functionalities like application settings, calibration, diagnosis, or status.

IoT - Internet of things The platform for remote access to your devices

  • Real-time Monitoring: Gain insight into the status of your machines at any time thanks to immediate access to important data.
  • Live Notifications: Stay up to date on the status of your devices with instant notifications.
  • Effortless Backup: Whether you need to back up a single device or an entire fleet, back up your data effortlessly and minimize downtime.
  • Automatic Software Updates: Verder Scientific IoT keeps your device software up to date, optimizing performance and reliability.
  • Access to Analyses Data: ELTRA analyzers offer remote access to analysis data. This allows you to conveniently access important data while on the move.
  • Autoloader Efficiency: Get the most out of remote analysis preparation with our autoloader feature, which ensures uninterrupted operation and increased productivity for all instruments equipped with it.

Experience the power of the Verder Scientific IoT platform today and unlock the full potential of your ELTRA analyzers!

OXYGEN / NITROGEN / HYDROGEN ANALYZERELEMENTRAC ONH-ps Typical Sample Materials

alloys, aluminum carbides, cast iron, ceramics, copper, ferroalloys, iron, metals,  refractory metals, steel, ...

copper
wire
steel

OXYGEN / NITROGEN / HYDROGEN ANALYZERELEMENTRAC ONH-p Functional Principle



The measuring principle of the ELEMENTRAC ONH-p elemental analyzer allows for a wide measuring range. To analyze the sample, it is weighed and placed on the sample port. Flushing with carrier gas prevents atmospheric gas (oxygen and nitrogen) from getting into the furnace.
The graphite crucible is outgassed in the impulse furnace of the analyzer to reduce possible contaminations (e.g. residual hydrogen). After a stabilization phase the sample is dropped into the crucible and melts. Carbon monoxide is produced by the reaction of carbon in the graphite crucible and oxygen of the sample. Nitrogen and hydrogen are released in its elemental form. The carrier gas (helium) and sample gasses pass through a filter before entering a copper oxide catalyst which converts the CO to CO2.
The CO2 is measured by the infrared cells to determine the oxygen content. CO2 and water are removed chemically and the nitrogen content is measured in the thermal conductivity cell. In the case of hydrogen analysis, nitrogen carrier as well as sample gas pass through a Schuetze reagent instead of a copper oxide catalyst. As an option the less expensive Argon can be used to determinate the oxygen and nitrogen content during analysis.

OXYGEN / NITROGEN / HYDROGEN ANALYZER ELEMENTRAC ONH-p Technical Data


Measured elements oxygen, nitrogen, hydrogen
Samples inorganic
Furnace alignment vertical
Sample carrier graphite crucibles
Field of application ceramics, engineering / electronics, steel / metallurgy
Furnace electrode impulse furnace (max. 8,5 KW*), temperatures in excess of 3,000 °C
Detection method solid state infrared absorption for oxygen thermal conductivity for nitrogen and hydrogen
Typical analysis time 120 - 180 s
Chemicals required copper oxide, magnesium perchlorate, Schuetze reagents,sodium hydroxide
Gas required compressed air, helium 99.995 % pure, nitrogen 99.995% pure, argon 99.995% pure (if required), all gases with (2 - 4 bar / 30 - 60 psi)
Power requirements 3~ 400 V, 50/60 Hz, max. 8,500 W
Dimensions (W x H x D) 56 x 78 x 64 cm
Weight ~ 165 kg
Required equipment PC, monitor, balance (resolution 0.0001g)
Optional accessories carrier gas purification, gas calibration unit, external chiller
- limited to 6,8 kw in application settings
